Four-Sided Applicators

Four-Sided Applicators

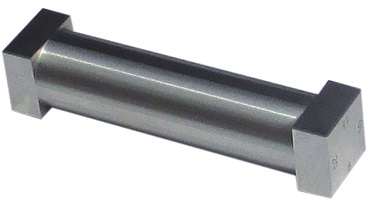

A flexible and easy to use applicator, combining 4 gaps sizes in one unit. The cylindrical shape provides excellent results particularly on firm, smooth surfaces. By simply rotating through 90° angles, the next gap size is place onto the substrate. It is designed according to ASTM D 823-25 and made of high-grade, corrosion-resistant stainless steel 440C.

Wet Film Width of:BGD 205→160mm;BGD 206→80mm

Total length:BGD 205→190mm;BGD 206→100mm

UNIVERSAL TYPE                          Wet Film Thickness (μm)
Wet Film Width: 100 mm
Total Length: 90 mm
BGD 206/1 5,10, 15, 20
BGD 206/2 25, 50, 75, 100
BGD 206/3 50, 100, 150, 200
BGD 206/4 30, 60, 90, 120
BGD 206/5 100, 200, 300, 400
BGD 206/6 50, 75, 100, 150
BGD 206/7 100, 150, 200, 250
BGD 206/8 250, 500, 750, 1000
LONG TYPE
Wet Film Width: 160 mm
Total Length: 190 mm
BGD 205/2 25, 50, 75, 100
BGD 205/3 50, 100, 150, 200
BGD 205/4 30, 60, 90, 120
BGD 205/5 100, 200, 300, 400
BGD 205/6 50, 75, 100, 150
BGD 205/7 100, 150, 200, 250
BGD 205/8 250, 500, 750, 1000
