Wall mounted stand mixers

Wall mounted stand mixers

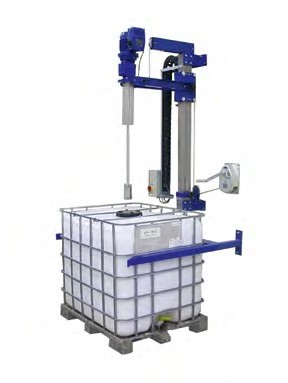

Rigid stand for wall-mounting for tank volumes from 100 l. Mixer powers from 0.37 kW to 7.5 kW and support loads up to 100 kg can be realized. Under these conditions, the stand can be equipped with all fast running or gear-reduced mixers and their matching agitator elements.

The lift is done by a geared handwheel or electric with a lift drive and chain drive. The mixer is positioned on a cantilever beam which is fixed to a support slide that is moved on the stand column. The electric or pneumatic supply is guided through a laterally mounted energy chain.The stand WRW is available in two standard sizes, thus enabling the processing of various tank sizes. The standard sizes are particularly designed for the processing of exchangeable vessels such as drums and IBCs.

Product type [WRW]

Outreach

(mm)

Lift height

(mm)

Lift mechanism
WRW-S - Gr.1 450 1,255 Handwheel
WRW-S - Gr.2 700 1,255 Handwheel
WRW-E - Gr.1 450 1,255 Electric
WRW-E - Gr.2 700 1,255 Electric

Other solutions for this series upon request.
