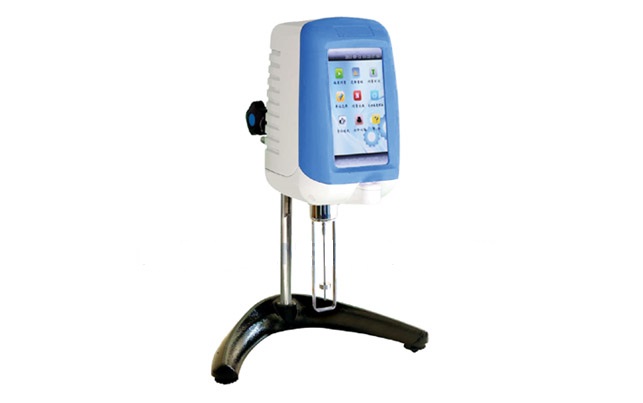

BGD 155/S Intelligent Touch-screen Rotary Viscometer(Professional)

Product Description

BGD 155/S series professional viscometers are our latest full touch screen products. More functions have been added on the base of BGD 155 viscometers


Technical Specification

  • 7 inch high definition touch screen, powerful easy to operate interface and user friendly operation menu for conversion
  • Anti-static shell and PC material lifting pole
  • Build-in temperature probe RTD
  • ARM chip processor: higher data processing speed
  • New designed durable small axles
  • Supplied with a gigabit ethernet interface to transfer data reliable and quickly.
  • Supplied with USB interface, supports operate to save measurement through external disk U: single point, continuous and timed saving ways for option.
  • Supplied with RS 232 interface, can print measuring data by mini-printer with less labor
  • Can be calibrated by user, temperature and viscosity correction factor are protected by password, can also be modified by user when they have reliable and accurate data.
  • Can measure viscosity by infinitely variable speed, select any speed, the instrument will display the maximum measuring range under different rotors. Convenient for user to choose suitable testing parameters
  • Convert freely between various viscosity units, such as dynamic viscosity to kinematic viscosity
  • Supplied with detailed operation instruction

Main Technical Parameters



More Information

Ordering Information

Parameters

BGD 155/1S

BGD 155/2S

BGD 155/3S

Measurement Range (mPa.s)

10-600,000600K

10-6,000,0006M

100-80,000,00080M

R.P.M (per min)

1-60

0.1-100(infinitely variable speed)

Rotor Amount

No.1, No.2, No 3, No 4 are standard configurations (#0   is optional)

Measurement

Accuracy

±1.0 % (of the full range)

Repeatability

±0.5 %

Power   Supply

Power Supply Adapter:100V~240V/50Hz

Optional   Accessories

BGD 1601---Low viscosity adapter (the No.0 rotor)

BGD 1602---Small sample adapter (comes with NO.21、NO.27、NO.28、NO.29)

BGD 1603---Mini single color printer

BGD 1606—Viscometer data collection and graphing   software

 Note:

  1. If customer needs the small sample adapter, the machine would come with NO.21、NO.27、NO.28、NO.29 rotor(the normal rotors are No.1, No.2, No 3, No 4)Please clarify before ordering if extra rotors are required.
  2. If selected the small sample adapter, the measurement range would be as below:
  • BGD 155/1S:10-100,000 100KmPa.s
  • BGD 155/2S:10-1,000,000 1MmPa.s
  • BGD 155/3S:50-10,000,00010M mPa.s
