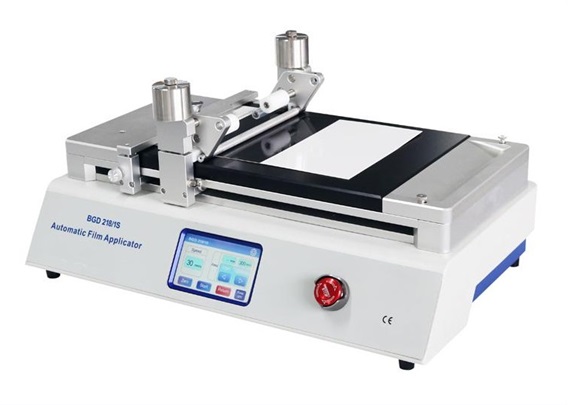

Film Application Devices
We offer a full range of automatic film applicators, with and without heating. Additional heating can be used for highly viscous products. Our automatic film applicator BGD 219-S with holding device has been developed for application of coatings on hard substrates such as glass and metal.
| Model | BGD 218-1S | BGD 218-2S | BGD 218-3 | BGD 219-S |
| Method of fixing substrate | Vacuum adsorption | Clamp | ||
| Application Platform | Hard anodic oxidation aluminium with vacuum holes | Glass | ||
| Draw down bed size (mm) | 340x250 | 470x250 | 360x250 | 340x 250 |
| Draw down vacuum bed size with holes (mm) | 290x190 | 410x190 | 290x190 | N/A |
| Max. Application Length (mm) | 310 | 430 | 250 | 310 |
| Application distance | Freely settable | 25-50-75-100% | Freely settable | |
| Adjustable Draw Down Speed | 5~500mm/s | 2mm/s~100mm/s | 5~500mm/s | |
| Carriage holder weight | 500g x pcs (1kg or 1.25 kg is optional) | |||
| Total power | 370W | 750W | 50W | |
| Temperature Range | - | RT+5°C~100°C | - | |
| Temperature Uniformity | - | ±5°C | - | |
| Power Source | 220V/50Hz | |||
| Weight (kg) | 26 | 35 | 42 | 25 |
| Overal size, excluding vacuum pump LxWxH (mm) | 500x360x340 | 690x360x230 | 500x345x340 | 560x360x230 |
