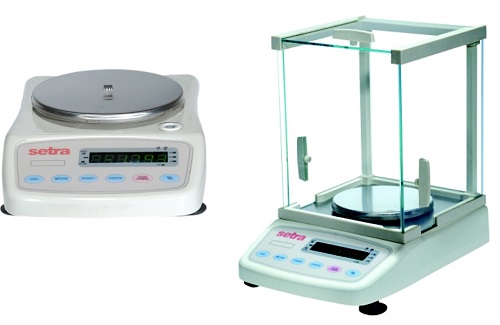

Setra Electronic Balances
The BL Precision Balance is an accurate, stable and robust balance which can be supplied with or without a plastic draft guard for higher accuracy of measurements. The BL Precision Balances are protected against spray and dust according to the IP54 standard. With the cable accessory, the BL can be connected to a computer for accurate recording of your data. A range of User programmable metric and imperial measurement units can be displayed.
| Ordering information Technical specification |
BL-120F | BL-200F | BL-410F | BL-500F | BL-1200F | BL-2000F | BL-4100F | BL-5000F |
|---|---|---|---|---|---|---|---|---|
| Capacity (g) | 120 | 200 | 410 | 500 | 1200 | 2000 | 4100 | 5000 |
| Readability (g) | 0.001 | 0.01 | ||||||
| Repeatability (g) | ±0.001 | ±0.01 | ||||||
| Linearity (g) | ±0.002 | ±0.02 | ||||||
| Keyboard | Six key | |||||||
| Pan Size (mm) | Ø122 | Ø158 | ||||||
| Draft shield | Standard | N/A | ||||||
| Size W*H*D (mm) | 279mm x 178mm x 290 | 279mm x178mm x 78 | ||||||
| Security Lock Kit | Optional | N/A | ||||||
| Keyboard | Six key | |||||||
| Interface | Bidirectional RS-232 (standard on all models) | |||||||
| Display | 0.57" LED (all models) | |||||||
| Power | 7.2VDC (115VAC,60HZ adapter provided) | |||||||
