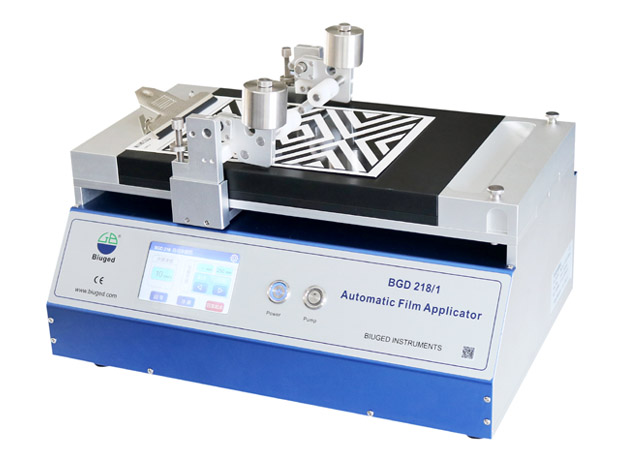

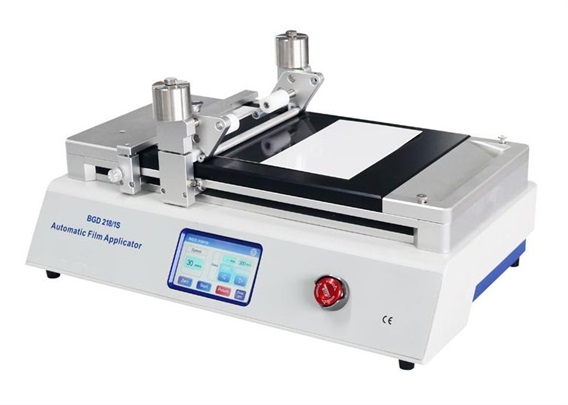

BGD 218/219 series - Automatic Film Applicators
The automatic film applicators, models BGD 218-S and BGD 219-S, provide chemists with a convenient tool for precisely applying coating films on various substrates. This automation reduces and eliminates errors associated with manual processes. The key factors influencing the draw-down process include the shear rate and downward force applied to the applicator tool. The automatic film applicator significantly enhances the reproducibility of paint films.
We offer a full range of automatic film applicators, BGD 218-1S and BGD 218-2S with vacuum bed. Film applicator BGD 218-3 offers additional heating which can be used for highly viscous products. Our automatic film applicator BGD 219-S with holding device has been designed with a glass bed as drawdown bed, and not - like the BGD 218 - with a vacuum bed. The main use is to apply films on hard substrates, such as metal or glass.
| Model BGD | 218-1S | 218-2S | 218-3 | 219-S |
| Method of fixing substrate | Vacuum adsorption | Clamp | ||
| Application Platform | Hard anodic oxidation aluminium with vacuum holes | Glass | ||
|
Draw down bed size (mm) |
340x250 | 470x250 | 360x250 | 340x250 |
|
Draw down vacuum bed size with holes (mm) |
290x190 | 410x190 | 290x190 | N/A |
|
Max. Application Length (mm) |
310 | 430 | 250 | 310 |
|
Heating (RT+5℃～100℃) |
- | - | Yes | - |
In stock
We will send you a price quotation with the correct prices as soon as possible, so you can confirm these.
BGD 218/219 series - Automatic Film Applicators
| Model | BGD 218-1S | BGD 218-2S | BGD 218-3 | BGD 219-S |
| Method of fixing substrate | Vacuum adsorption | Clamp | ||
| Application Platform | Hard anodic oxidation aluminium with vacuum holes | Glass | ||
| Draw down bed size (mm) | 340 x 250 | 470 x 250 | 360 x 250 | 340 x 250 |
| Draw down vacuum bed size with holes (mm) | 290 x 190 | 410 x 190 | 290 x 190 | N/A |
| Max. Application Length (mm) | 310 | 430 | 250 | 310 |
| Application distance | Freely settable | 25-50-75-100% | Freely settable | |
| Adjustable Draw Down Speed | 5mm/s~500mm/s | |||
| Carriage holder weight | 500g x pcs (1kg or 1.25 kg is optional) | |||
| Total power | 370W | 750W | 50W | |
| Temperature Range | - | RT+5°C~100°C | - | |
| Temperature Uniformity | - | ±5°C | - | |
| Power Source | 220V/50Hz | |||
| Weight (kg) | 26 | 35 | 42 | 25 |
| Overal size, excluding vacuum pump LxWxH (mm) | 500x360x340 | 690x360x230 | 500x345x340 | 560x360x230 |
