We offer a wide range of drawdown cards and charts for virtually any application and coating material. Stringent equality control during the production process assures that they have the most consistent color and gloss in the industry.
In stock
We will send you a price quotation with the correct prices as soon as possible, so you can confirm these.
We offer a wide range of drawdown cards and charts for virtually any application and coating material. Stringent equality control during the production process assures that they have the most consistent color and gloss in the industry.
Test charts are easy to use and an economical substrate to test a variety of coating properties, such as opacity, spreading rate, and flow& leveling behavior. They are used for testing architectural, industrial, automotive, wood finishes or even cosmetic products（e.g. nail polish.
Depending on the material properties of the product to be tested and its usage different types of drawdown cards are available.

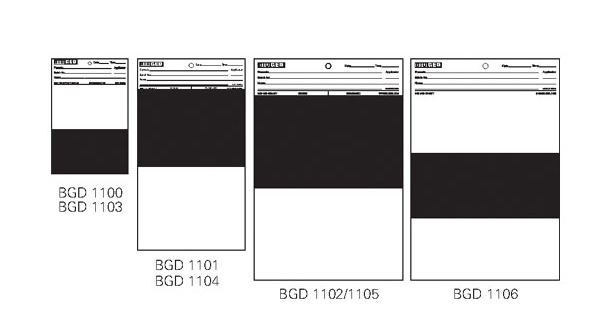

Comprised of a simple combination of black and white areas. The reflectance of black area <1；reflectance of with area：80±2°
Solvica offers a wide range of drawdown cards and charts for virtually any application and coating material. Stringent quality control during the production process ensures that they have the most consistent color and gloss in the industry. Test charts are easy to use and provide an economical substrate to test a variety of coating properties, such as opacity, spreading rate, and flow & leveling behavior. They are used for testing architectural, industrial, automotive, wood finishes, or even cosmetic products (e.g., nail polish). Depending on the material properties of the product to be tested and its usage, different types of drawdown cards are available.
Standards
ASTM D 344
Technical Specification
Depending on the types of solvent used in paint formulations, a drawdown chart needs to be more or less solvent-resistant. The resin type requires different solvent types, and depending on the polarity of the solvent, the organic ingredients will be more or less activated. Therefore, Solvica offers two types of drawdown cards and charts.
Clear-coated Charts
Ideal for a wide range of coating systems: water- and solvent-borne technologies
Guaranteed non-fluorescent paper in compliance with ASTM D 344
Repeatable color and gloss, lot after lot
Superior adhesion characteristics, especially with latex paints
Rugged design (0.5 mm thickness) to prevent warping and bending after the coating is applied
Package is shrink-wrapped with low permeability plastic to prevent moisture absorption during shipping and storage
Film Laminated Charts
Excellent solvent resistance
Repeatable color and gloss, lot after lot
Smooth, structure-free surface
Superior adhesion properties and flexibility
0.5 mm thickness
Double film laminated; will not warp and bend - even in high humidity environments
